1. Roller specification: Φ400×1600mm;

2. Roller Material: superior alloy steel(China Code 42CrMo) forged roller;

3. Roller intermediate frequency quenching, hardness: HRC55-58;

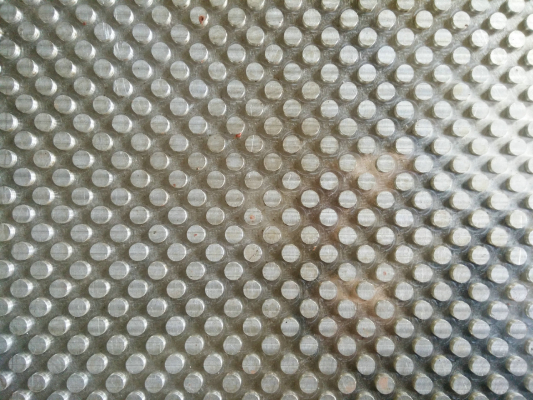

4. Roller Pattern: quadrangular star, wood grain, rain-drops, and so on.

5. Way of embossing: the male and female rollers press each other up and down;

6. The way of controlling the pattern depth: by screw bolts;

7. Transmission: gear transmission;

8. Motor: 11Kw frequency motor,reducer;

9. Embossing speed: 0-25m/min, control by frequency converter;

10. The machine installation safety cover;

11. Suitable for plate: Steel sheet ≤ 2.5×1500mm

                                Galvanized sheet ≤ 2.0×1500mm

                                Stainless steel sheet ≤ 2.0×1500mm;

12.Guarantee period: One year;
